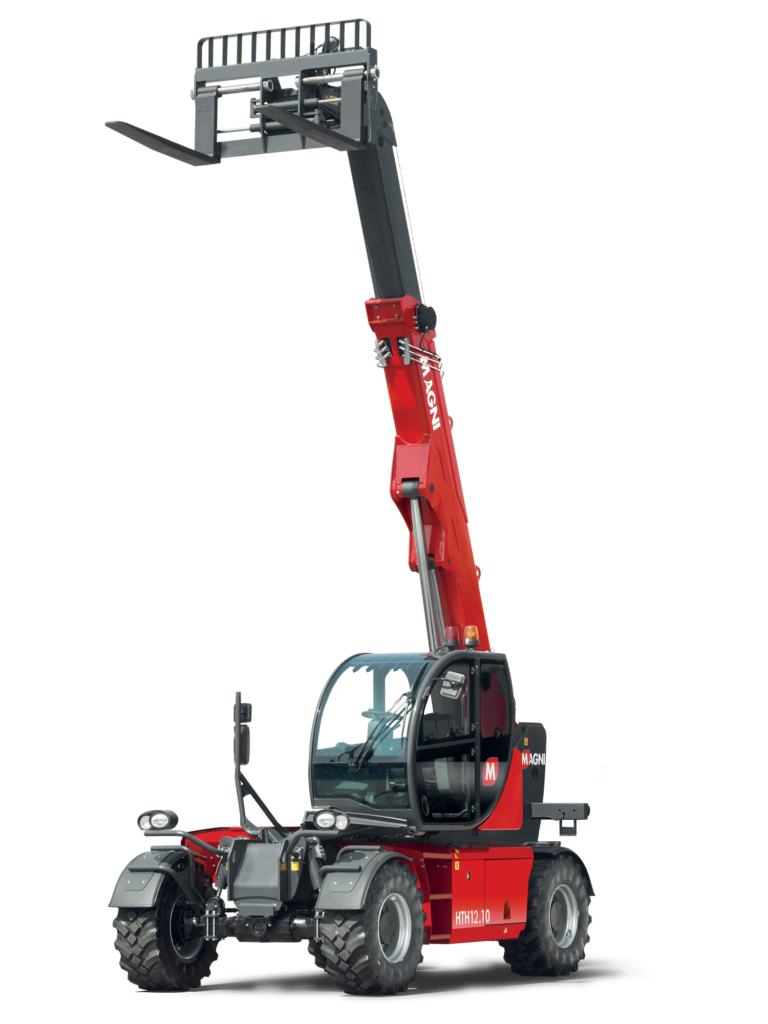

HTH 12.10

TECHNICAL FEATURES

  • Lifting capacity: 12.000 kg
  • Capacity at maximum height: 9.000 kg
  • Lifting height: 9,50 m
  • Reach: 5 m
  • Engine: Deutz TCD 3,6 L4 -Stage V
  • Rated power: 100 kW (136 hp) 2.200 rpm
  • Number of gears: 2/2
  • Hydraulic system: 350 bar (Load Sensing)
  • Length: 5,66 m
  • Width: 2,55 m
  • Ground clearance: 370 mm
  • Unladen weight: 14.400 kg
  • Travel speed: 40 km/h
  • Climate control as standard: Yes
  • Automatic attachment recognition: Yes
  • Reversable fan drive: Yes

STANDARDS MET

  • 2006/42/CE : EU Machinery Directive
  • 2016/1628 : EU regulation on the emissions of  Stage V engines
  • EN 1459-X : Relating to standards on the safety requirements for variable reach machines
  • EN 280/EN 280-1/EN 280-2 : standards relating to mobile elevating work platforms (if available)
  • ROPS/FOPS Level 2 : relating to the standards for protective structures

DESCRIPTION

The HTH 12.10 telescopic handler is ideal for moving large, bulky loads in complete safety. Able to lift up to 12 tonnes, it is compatible with a wide range of accessories, making it extremely versatile. Equipped with an RFID system which provides automatic recognition of the various attachments used, this telescopic handler is able to meet a wide range of applications in heavy industry. Its four-wheel drive system, three manoeuvring modes and high ground clearance makes it highly manoeuvrable on all terrains.

The standard machine configuration includes:

CAB
Comfort seat
Adjustable steering column
Analogue joypad
Heating
Air conditioning
FM/AM radio with USB and Bluetooth connectivity
USB Type-A (5 V) inputs



REAL TIME INFORMATION
Touchscreen, 7”
MCTS – Magni Combi Touch System on-board software
Automatic RFID tools recognition system
LMI – Load Moment Indicator
Onboard and remote integrated diagnostics



TECHNICAL SPECIFICATIONS
Q-Fit standard
Provision for platform
Two-line CAN BUS system
Automatic front and rear wheel alignment
Automatic parking brake
Mechanical battery cut-off in engine compartment
Electrical system: 24 V – IP67



SERVICE

MyMagni by Trackunit connectivity system (3 years)

Warranty: 24 months/2,000 hours
