HTH 20.10
FAMILY
TECHNICAL FEATURES
- Lifting capacity: 19.999 kg
- Capacity at maximum height: 15.000 kg
- Lifting height: 9,80 m
- Reach: 5,10 m
- Engine: Volvo TAD 582 VE – Stage V
- Rated power: 160 kW (218 hp) 2.300 rpm
- Number of gears: 2/2
- Hydraulic system: 350 bar (Load Sensing)
- Length: 6,13 m
- Width: 2,55 m
- Ground clearance: 400 mm
- Unladen weight: 24.300 kg
- Travel speed: 25 km/h
- Climate control as standard: Yes
- Automatic attachment recognition: Yes
- Reversable fan drive: Yes
STANDARDS MET
- 2006/42/CE : EU Machinery Directive
- EN 1459-2 : concerning standards for slewing variable-reach trucks
- EN 13000 : concerning standards for mobile cranes
- ROPS/FOPS Level 2 : relating to the standards for protective structures
- 2016/1628 : EU regulation on the emissions of Stage V engines
DESCRIPTION

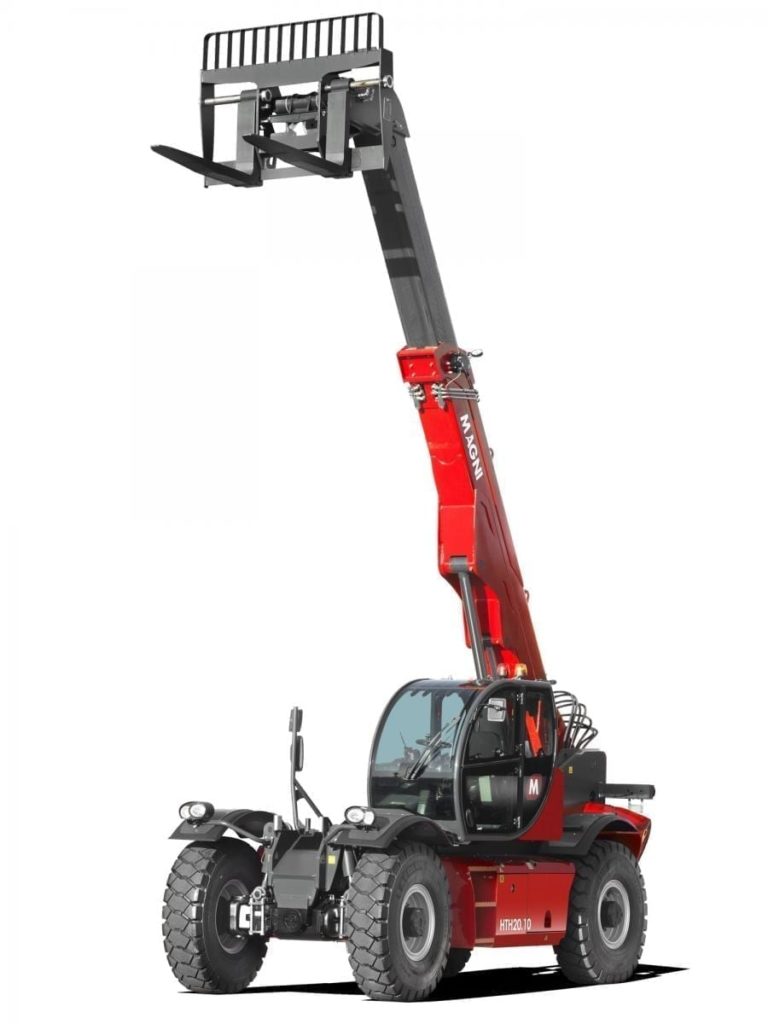

The HTH 20.10 telescopic handler is ideal for moving large, bulky loads in complete safety. Able to lift up to 20 tonnes, it is compatible with a wide range of accessories, making it extremely versatile. Equipped with an RFID system which provides automatic recognition of the various attachments used, this telescopic handler is able to meet a wide range of applications in heavy industry. Its four-wheel drive system, three maneuvering modes and high ground clearance makes it highly maneuverable on all terrains.
