• Stabilizers: none
• Lifting capacity: 25,000 kg
• Capacity at maximum height: 14,000 kg
• Lifting height: 10.50 m
• Max. reach: 5.65 m
• Engine: Volvo TAD583 VE-Stage V
• Rated power: 175 kW (238 hp) 2,300 rpm
• Number of gears: 2/2
• Hydraulic system: 350 bar (Load Sensing)
• Length: 6.92 m
• Width: 2.96 m
• Ground clearance: 430 mm
• Empty weight: 29,700 kg
• Speed: 25 km/h
• Standard Air Conditioning: Yes
• Automatic accessory recognition: Yes
• Reversible fan: Yes

• 2006/42/EC: EU Machinery Directive
• 2016/1628: EU Regulation on emissions from Stage V engines
• EN 1459-X: relating to the safety requirements for variable reach trucks
• ROPS/FOPS Level 2: relating to the standard for protective structures

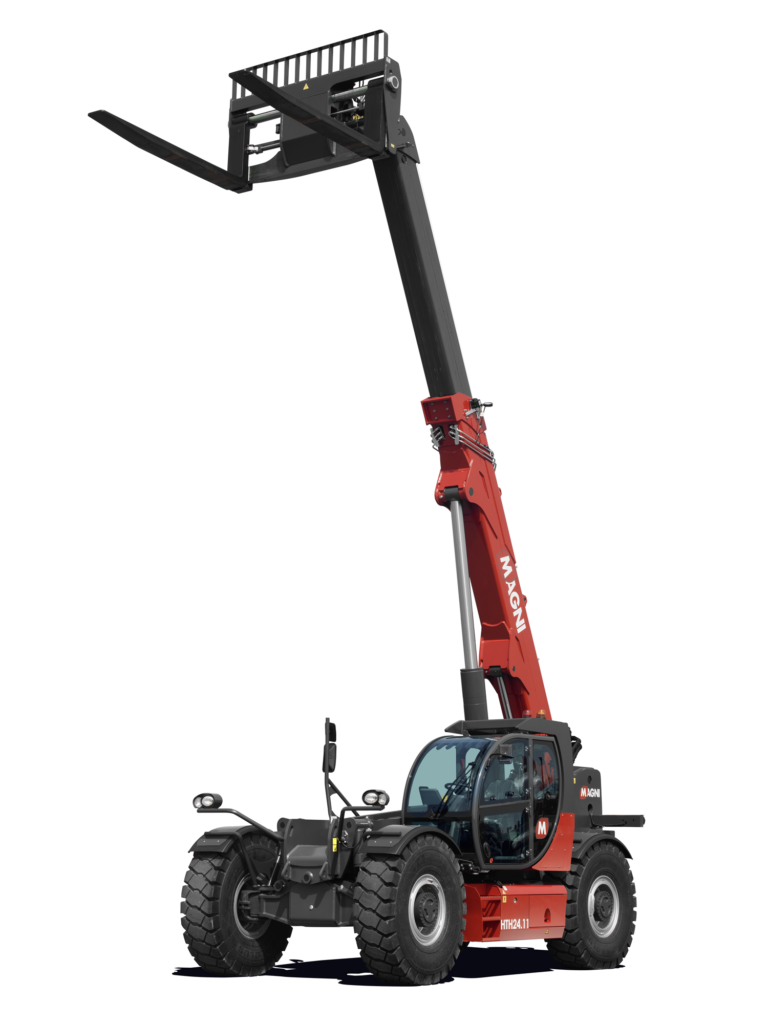

The HTH 25.11 high-capacity telescopic handler represents an evolution compared to the previous HTH 24.11 model, maintaining the same dimensions and main technical characteristics, but with a substantial improvement in load capacity.

One of the main innovations introduced by the HTH 25.11 model concerns the load diagram, which has been completely revised, resulting in a concrete improvement in performance. With a load capacity of 18,000 kg at the maximum height of 10.5 m, the new model offers a significant increase compared to the 14,000 kg of the previous version, with a gain of 4,000 kg at full height (+29%).

Even the capacity at the maximum horizontal outreach of 5.8 metres is the result of a refined optimisation: while the previous model offered a capacity of 7,200 kg, the new HTH 25.11 is able to lift up to 8,000 kg (+11%), thus guaranteeing greater operating capacity even in the most demanding operations.

The standard configuration of the machine includes:

CABIN

Comfort seat
Adjustable steering column
Analogue joypad
Heating
Air conditioning
FM/AM car radio with USB and Bluetooth connectivity
USB Type-A inputs (5V)

REAL-TIME INFORMATION

7 inch touch screen
MCTS – On-board software Magni Combi Touch System
Automatic RFID equipment recognition system
LMI – Load control system
Integrated on-board and remote diagnostics

TECHNICAL FEATURES

Heavy-Duty Q-fit
Two-line CAN-bus system
Automatic front and rear wheel alignment
Automatic parking
brake Mechanical battery switch in the engine compartment
24V electrical system -IP67

SERVICE

24 months or 2000 hours warranty
