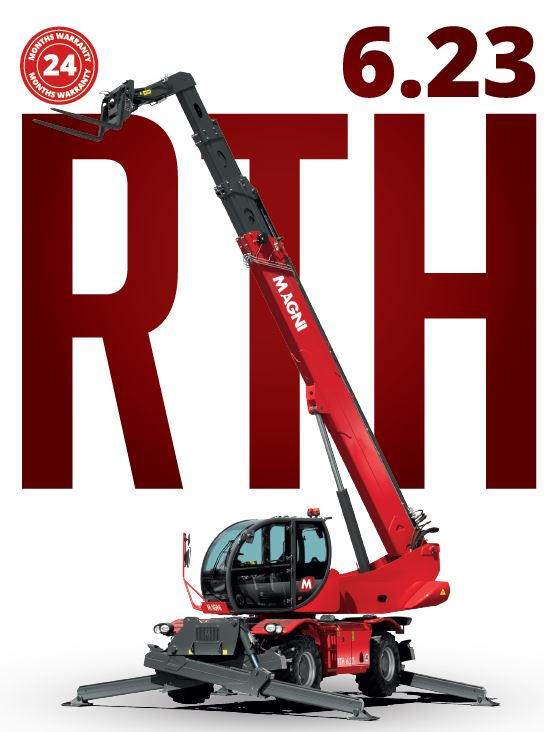

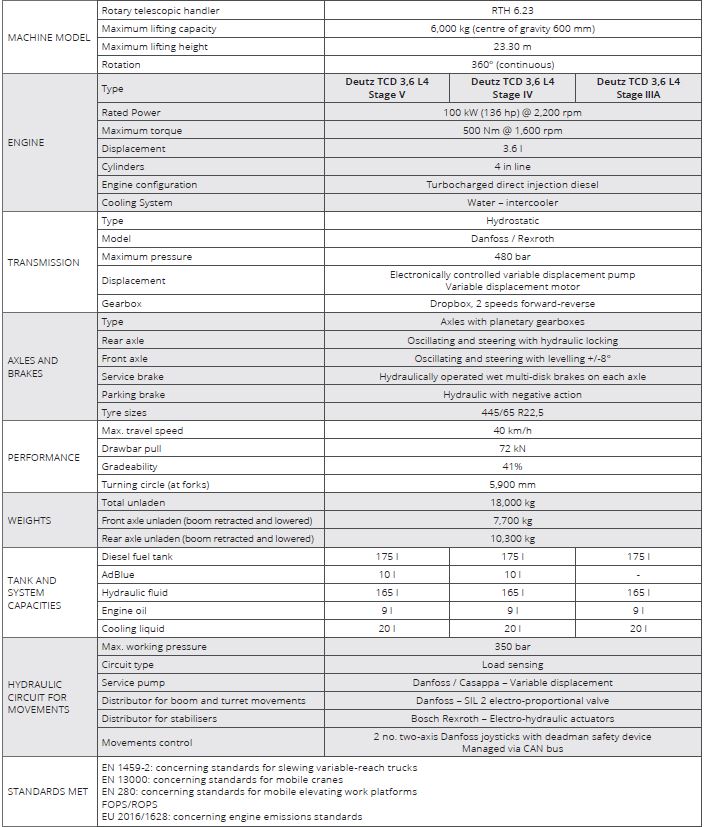

RTH 6.23

• Stabilizers: scissors
• Lifting capacity: 13.200 lbs
• Capacity at maximum height: 6.600 lbs
• Lifting height: 76′ 4”
• Outreach: 64′ 6”
• Engine: Deutz TCD 3.6 L4 – Tier 4f
• Nominal power: 100 kW (136 Hp) @ 2.200 rpm
• Number of gears: 2/2
• Hydraulic system: Load Sensing 350 bar

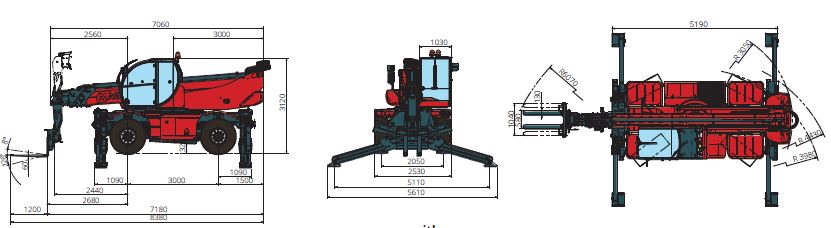

• Length: 23′ 7”
• Width: 8′ 2”
• Clear light from the ground: 13”
• Empty weight: 39.685 lbs
• Speed of movement: 25 Mph
• Rotation: 360° (continuous)
• Air conditioning as standard: Yes
• Automatic accessory recognition: Yes

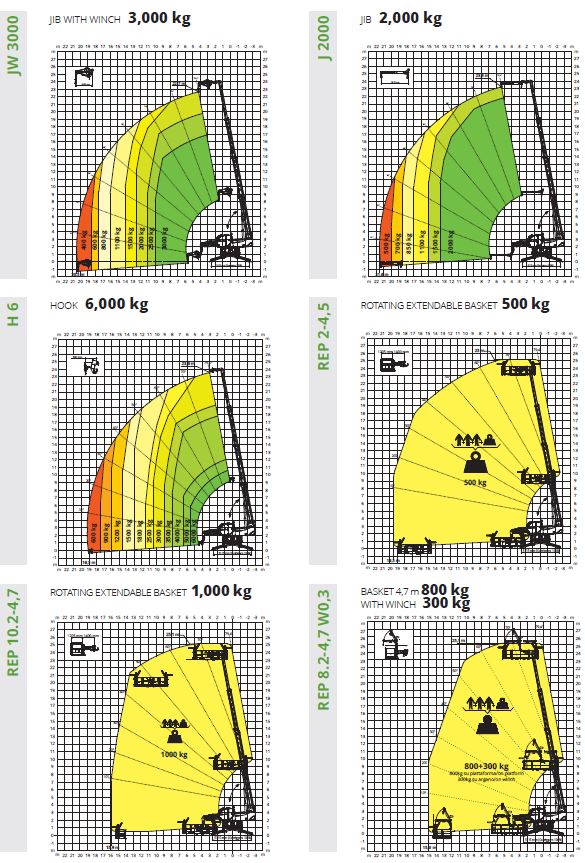

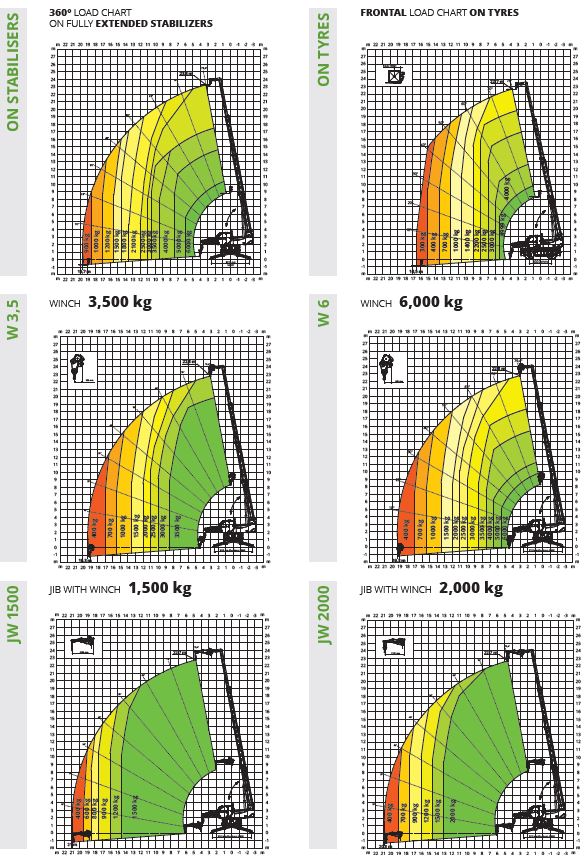

The RTH 6.23 is a simple yet high-performance rotating telescopic handler. It can lift loads to a height of 76 ft and is equipped with scissor stabilizers to ensure greater safety and stability during working maneuvers. The scissor stabilizers are ideal even with limited space available; even when it is only partially stabilized, the machine is programmed to provide the best possible load chart on each side. When the stabilizers are fully extended, on the other hand, they guarantee maximum machine performance over 360° as they can work over a very wide stabilization base. It is compatible with a huge range of accessories, thanks also to the RFID system which provides automatic recognition of the attachment and creation of the relative load charts; this telescopic handler can meet a wide range of applications in construction and industry.
