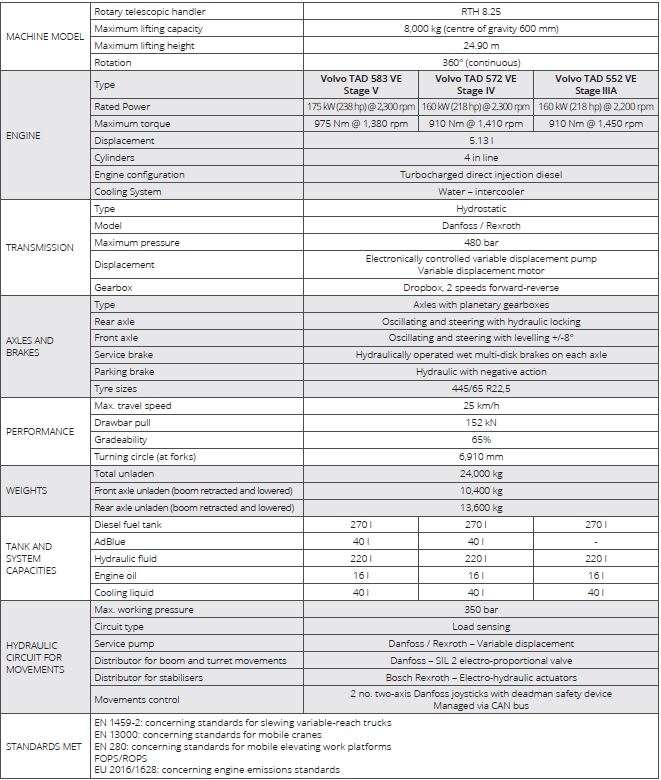

RTH 8.25


  • Stabilizers: scissors
  • Lifting capacity: 17.500 lbs
  • Capacity at maximum height: 11.600 lbs
  • Lifting height: 81′ 8”
  • Outreach: 69′ 2”
  • Engine: Volvo TAD 572 VE – Tier 4f
  • Nominal power: 160 kW (218 Hp) @ 2.300 rpm
  • Number of gears: 2/2
  • Hydraulic system: Load sensing 350 bar

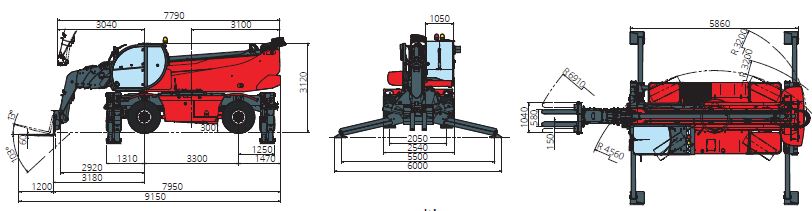

  • Length: 25′ 8”
  • Width: 8′ 4”
  • Clear light from the ground: 14”
  • Empty weight: 52.900 lbs
  • Speed of movement: 15 Mph
  • Rotation: 360° (continuous)
  • Air conditioning as standard: Yes
  • Automatic accessory recognition: Yes

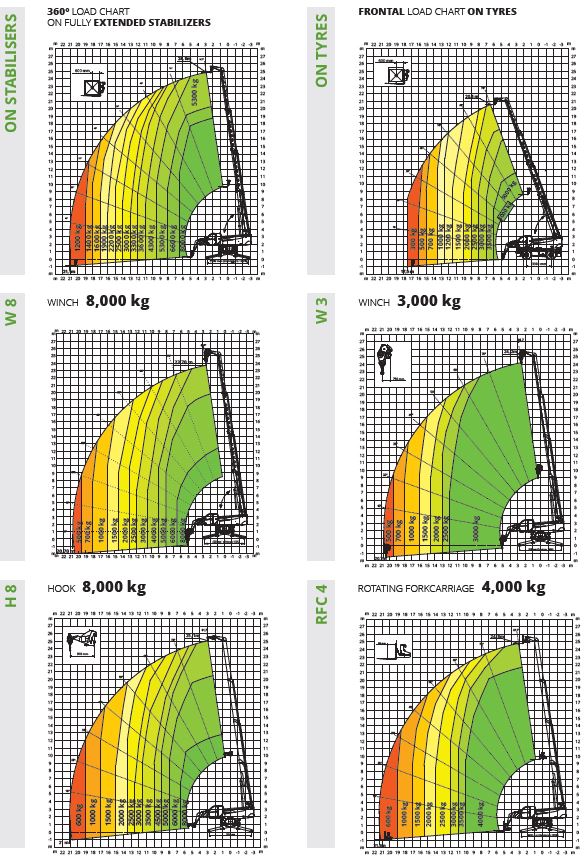

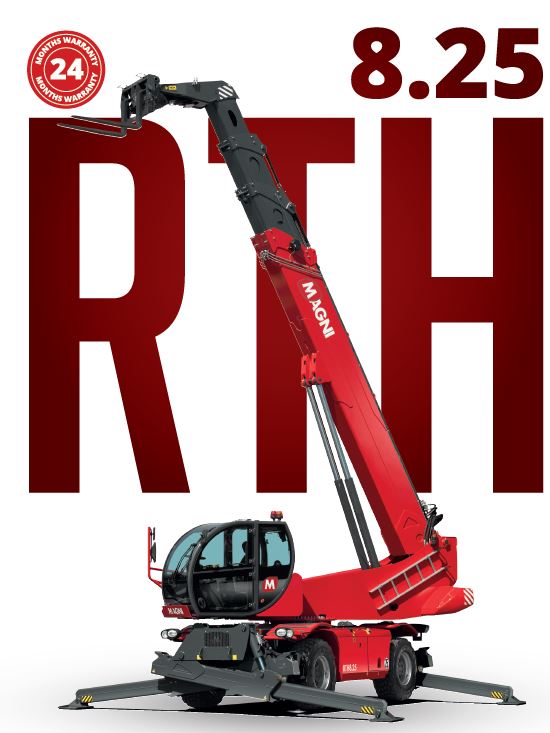

The RTH 8.25 is a rotating telescopic handler offering a very high lifting capacity. Its maximum lifting capacity of 8 tonnes makes it extraordinarily effective on construction or industrial sites requiring high lifting capacities. The inclination corrector and scissor stabilisers with large support feet offer excellent stability under all circumstances, guaranteeing perfect ground holding on all terrain in order to ensure maximum operator safety. The scissor stabilisers are ideal even with limited space available; even when it is only partially stabilised, the machine is programmed to provide the best possible load chart on each side. When the stabilisers are fully extended, on the other hand, they guarantee maximum machine performance over 360° as they are able to work over a very wide stabilisation base. It is compatible with a huge range of accessories, thanks also to the RFID system which provides automatic recognition of the attachment and creation of the relative load charts; this telescopic handler is able to meet a wide range of applications in construction and heavy industry.
