• Stabilizers: Telescopic scissor
• Maximum lifting capacity: 8000 kg
• Capacity at maximum height: 2500 kg
• Maximum lifting height: 45.9 m
• Maximum reach: 33 m
• Engine: Volvo TAD 583 VE – Stage V
• Rated power: 175 kW (238 hp) 2300 rpm
• Max. hydraulic flow rate: 205 l/min
• Number of gears: 2/2
• Hydraulic circuit for movements: 350 bar Load Sensing
• Length: 9.2 m
• Width: 2.49 m
• Unladen weight: 35800 kg
• Max. travel speed: 25 km/h
• Rotation: 360 ° (continue)
• Air conditioning: Yes
• Automatic RFID tools recognition system: Yes
• Reversible fan: Yes

• 2006/42/EC EU Machinery Directive
• 2016/1628 EU Regulation on the emissions of stage V engines
• EN 1459-X Relating to standards on the safety requirements for variable reach machines
• EN 280-1/EN 280-2 standards relating to mobile elevating work platforms (if available)
• ROPS/FOPS Level 2 relating to the standards for protective structures

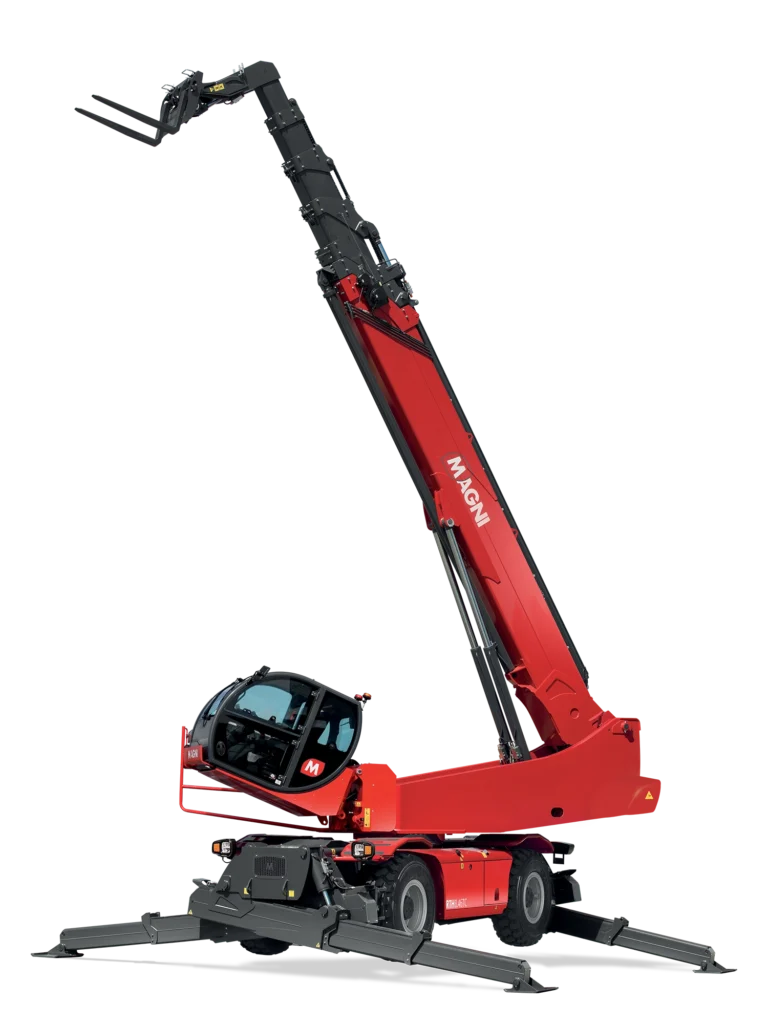

RTH 8.46 TC combines the performance of the RTH 8.46 with the benefits of a tilting cab, providing maximum visibility, comfort and control during lifting operations at height.

With a maximum lifting capacity of 8,000 kg, a maximum lifting height of 45.90 m and a maximum reach of 33.00 m, the RTH 8.46 TC is designed to deliver precise performance even in the most demanding applications. Its 360° continuous rotation and scissor stabilisers ensure outstanding versatility and stability across a wide range of working configurations, making it an ideal solution for construction, logistics, events and the film industry.

The cab’s tilt, which can be adjusted from 0° to +21°, ensures optimal visibility during lifting operations, guaranteeing precise control even during the most complex and delicate phases. It also significantly enhances operator comfort, maintaining ideal working conditions even during prolonged operating cycles.

CAB

Tilting cab up to 21°
Premium tilting seat with air suspension and headrest
Adjustable steering column
Analogue joypad
Adjustable sunblind
Heating
Air conditioning
FM/AM radio with USB and Bluetooth connectivity
Ambient LED lights
USB Type-A and Type-C (5 V) inputs

Real time information

Automatic RFID tools recognition system
LMI – Load Moment Indicator
LLD – Live Load Diagram
Touchscreen, 12”
MCTS – Magni Combi Touch System on-board software
Onboard and remote integrated diagnostics
Reversing camera with image integrated in the MCTS

Technical specifications

Q-Fit standard
Provision for platform
Advanced three-line CAN BUS system
Automatic levelling system for outriggers
Automatic front and rear wheel alignment
High-precision turret rotation motor by Liebherr
Automatic parking brake
Mechanical battery cut-off in engine compartment
Electrical system: 24 V – IP67
