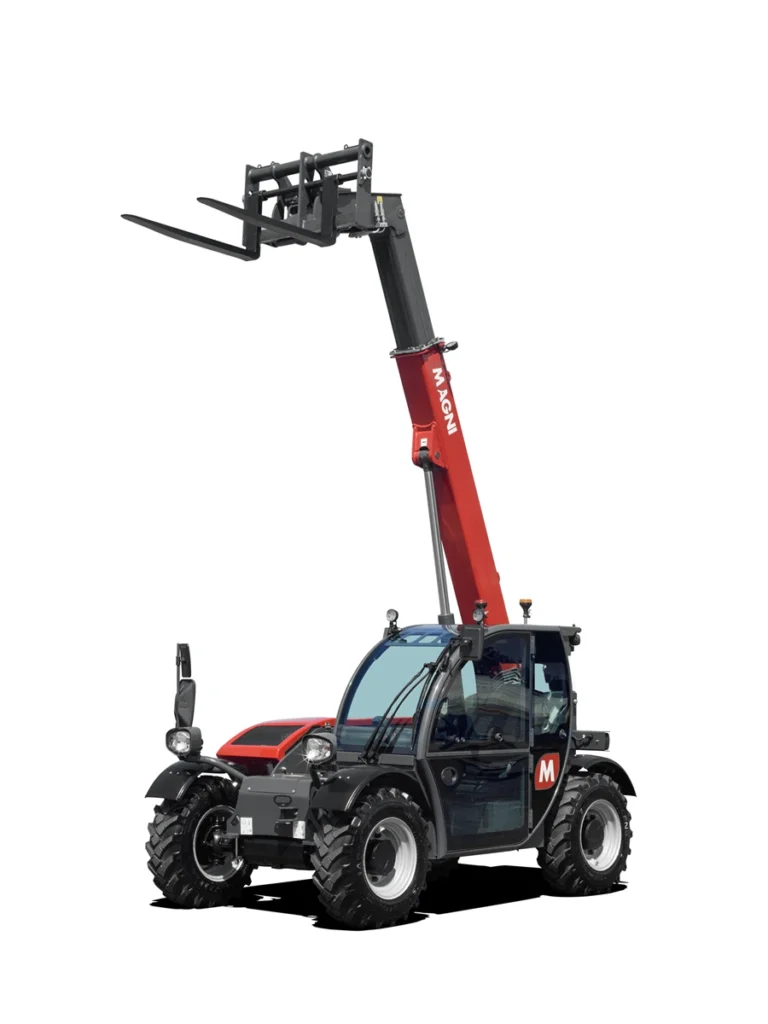

TH 3.6 e

• Stabilizers: No
• Maximum lifting capacity: 3000 kg
• Capacity at maximum height: 2500 kg
• Maximum lifting height: 5.8 m
• Maximum reach: 3.5 m
• Rated power: 54 kW
• Max. hydraulic flow rate: 87 l/min
• Number of gears: 2/2
• Hydraulic circuit for movements: 255 bar Load Sensing
• Length: 3.7 m
• Width: 1.8 m
• Ground clearance: 380 mm
• Unladen weight: 4950 kg
• Max. travel speed: 20 km/h
• Air conditioning: No
• Automatic RFID tools recognition system: No
• Reversible fan: No

• 2006/42/CE EU Machinery Directive
• EN 1459-X Relating to standards on the safety requirements for variable reach machines
• EN 280-1 standards relating to mobile elevating work platforms (if available)
• ROPS/FOPS to the standards for protective structures

With a capacity of 3 tonnes and a lifting height of 5.8 metres, the TH 3.6 e represents a milestone in the Magni range, as it is the first 100% electric telehandler to be launched. It combines compact dimensions, maximum versatility and a highly efficient electric power source. Designed for the construction and logistics sectors, its low-profile design makes it ideal for confined spaces, enclosed areas and construction sites where low noise and emission levels are required, such as city centres. The Magni attachment in use can be selected via the cab display, and the MCTS will show the dedicated load diagram, allowing the operator to maximise the machine’s performance while remaining safe at all times.

Long lasting power and consistent performance

The 350V battery chosen by Magni TH is not only more powerful: it is also highly efficient, lightweight and reliable throughout its service life. Thanks to its optimised 29A current output, its thermal dissipation is up to 9 times lower than standard products. The result? A more compact system and consistent performance under even the most challenging conditions.

Hydrostatic transmission: fluidity and power

Imagine always having exactly the right power at your fingertips, without wastage. Combining a hydrostatic transmission with an electric motor offers outstanding efficiency over a wide range of speeds, guaranteeing performance comparable to combustion engine systems: traction force up to 41 kN, gradeability of 83%, and 20 km/h maximum speed. A pioneering technology in the sector, developed with major investments into R&D, combining power and sustainability.

Fast charging, efficiency and uninterrupted operation

The TH 3.6 e is the only telescopic handler on the market to offer 28 kW Superfast CCS charging: just one hour is enough to charge the system from 0 to 80%. Alternatively, a 13 kW option (3 hours) and standard 6.6 kW option (5.5 hours) are also available, depending on the application.

Intelligent energy recovery

Every touch of the brakes, every deceleration is transformed into valuable energy. The TH 3.6 e’s regenerative system recharges the battery on the move, reduces brake wear and increases overall range. Lowering the boom also exploits inertia in a controlled way, resulting in lower consumption, quieter operation and, above all, outstanding comfort.

Uncompromising versatility and comfort

Enclosed spaces, urban areas, restricted worksites: with its electric power system, the TH 3.6 e opens up new possibilities, thanks to its zero emissions and minimal operating noise. For the operator, this translates into greater flexibility and improved user comfort.
