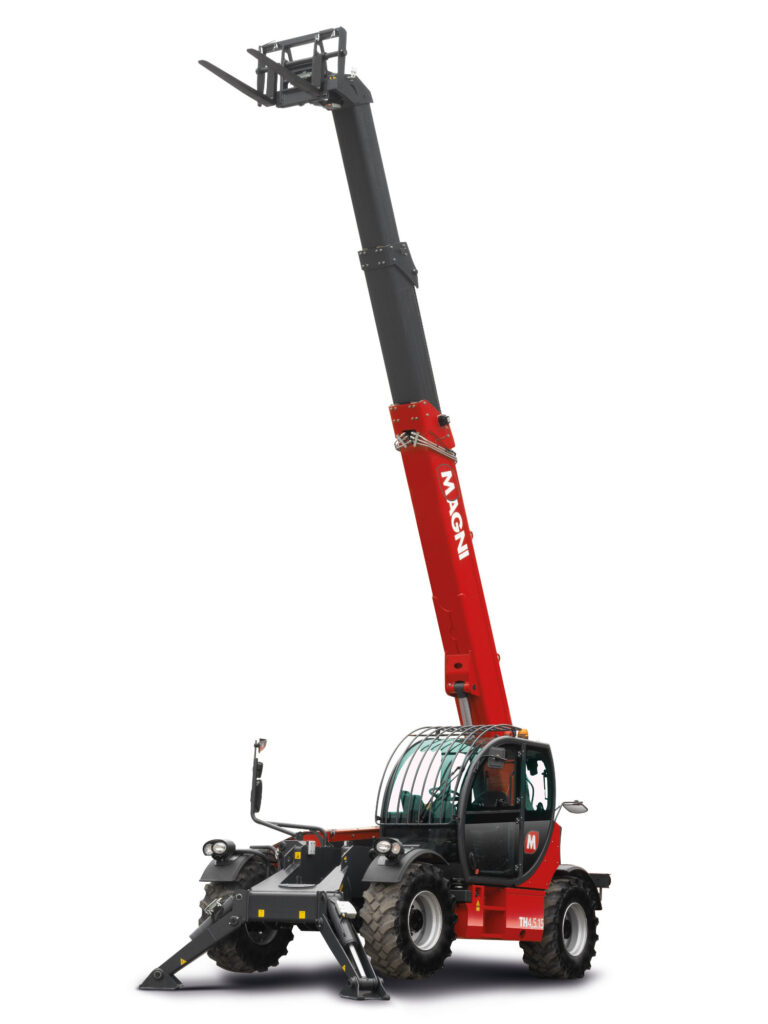

TH 4,5.15

• Stabilisers: Pivoting
• Lifting capacity: 4.500 kg
• Capacity at maximum height: 3.500 kg
• Lifting height: 15,20 m
• Reach: 10,40 m
• Engine: Deutz TCD 3,6 L4 Stage V
• Rated power: 55,40 kW (75,30 hp) 2.200 rpm
• Number of gears: 2/2
• Hydraulic system: 350 bar (Load Sensing)
• Length: 6,41 m
• Width: 2,53 m
• Ground clearance: 410 mm
• Unladen weight: 12.500 kg
• Travel speed: 25 km/h
• Climate control as standard: No
• Automatic accessory recognition: Yes

• EN 1459-1 : concerning standards for variable-reach trucks
• FOPS Level 2/ROPS
• UE 2016/1628 : concerning engine emissions standards

The new THA 5.10 model has a maximum capacity of 5 tons and a maximum working height of 10 meters; capable of handling high capacity solutions, this machine has been designed to meet the needs of the agricultural world.

These features, combined with a 125 kW (170 hp) FPT Stage V engine, allow it to reach 50 km/h. The 4-wheel drive and steering , supported by a hydrostatic transmission, ensure maximum stability and maneuverability with 3 types of steering: front, concentric and crab.

Consultable via the touch screen, the on-board MCTS (Magni Combi Touch System) software provides complete control of the machine via icon navigation. From the main menu you can access the thematic pages with the various functions, including load diagrams with new functions specific to the agricultural world.

Distinctive features of this new model:

• Cab suspension : increases operator comfort and reduces vibrations while working.
• Shortcut buttons located on the control console provide quick access to the main functions on the screen. The operator can configure the shortcuts according to his/her preferences.
• LED front and rear lights as standard
• Engine retarder : solution implemented thanks to a joint effort between Magni and FPT. For safety reasons, this function maintains stable rpm on descents for greater protection of the shaft and engine when driving on steep roads.
• Electronic LC : the hydraulics are constantly monitored via electronics in order to reduce consumption and consequently the machine’s emissions as much as possible.
• CVT Transmission : High-performance transmission designed to allow better traction on all types of terrain; it also allows a speed of 50 km/h in all driving conditions.
• Hydropneumatic axle suspension: in working configuration, the cylinders make the machine rigid and capable of handling the load at its best. These cylinders can be extended independently to compensate for the slope of the ground.
• Lateral translation : This function allows the arm to translate +/-4.5° to optimize the positioning of the load laterally.
• 7° Leveling System : This mechanism allows the machine to level laterally by +/- 7°.
