THA 4,5.8

• 2006/42/EC : EU Machinery Directive
• 2000/14/EC : Noise Directive
• EN 1459-1 : Relating to standards on safety requirements for variable reach trucks
• EN 280-1/EN 280-2 : standards relating to mobile elevating work platforms (where available)
• 2014/30/EU : EMC Directive
• ROPS/FOPS Level 2 : relating to the standard for protective structures

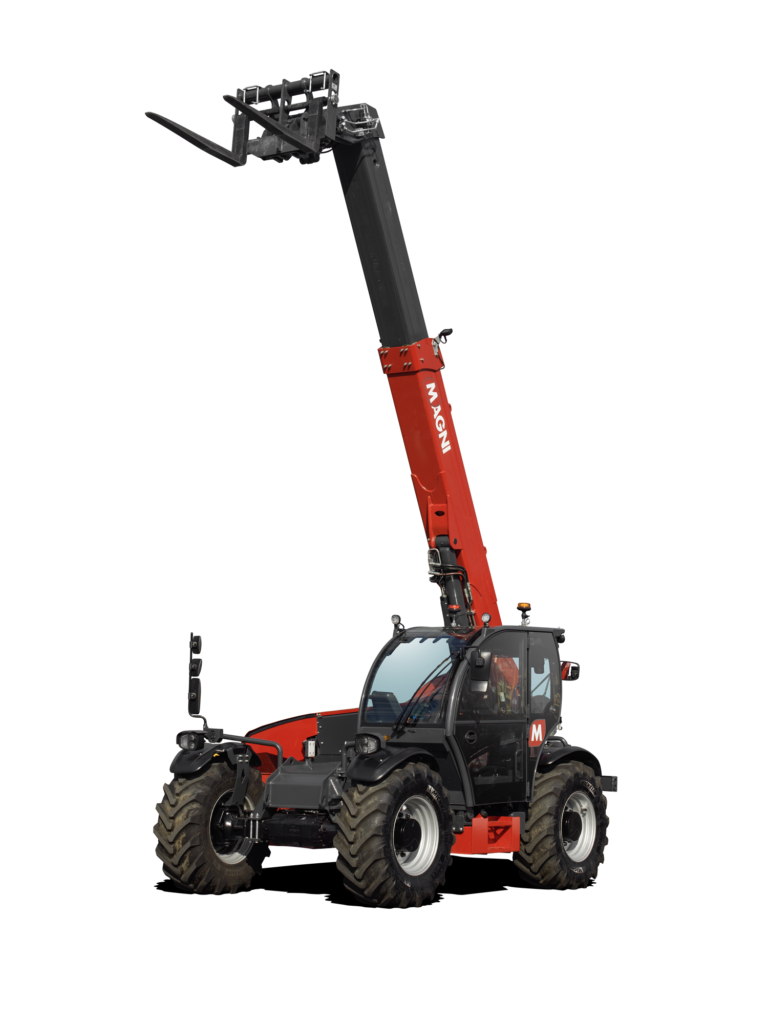

The new THA 4.5.8 model has a maximum capacity of 4.5 tonnes and a maximum working height of 7.7 metres; capable of handling high capacity solutions, this machine has been designed to meet the needs of the agricultural world.

These features, combined with a 125 kW (170 hp) FPT N45 Stage V engine, allow it to reach 40 km/h. The 4-wheel drive and steering , supported by a hydrostatic transmission, ensure maximum stability and maneuverability with 3 types of steering: front, concentric and crab.

Consultable via the touch screen, the on-board MCTS (Magni Combi Touch System) software provides complete control of the machine via icon navigation. From the main menu you can access the thematic pages with the various functions, including load diagrams with new functions specific to the agricultural world.

Distinctive features of this new model:

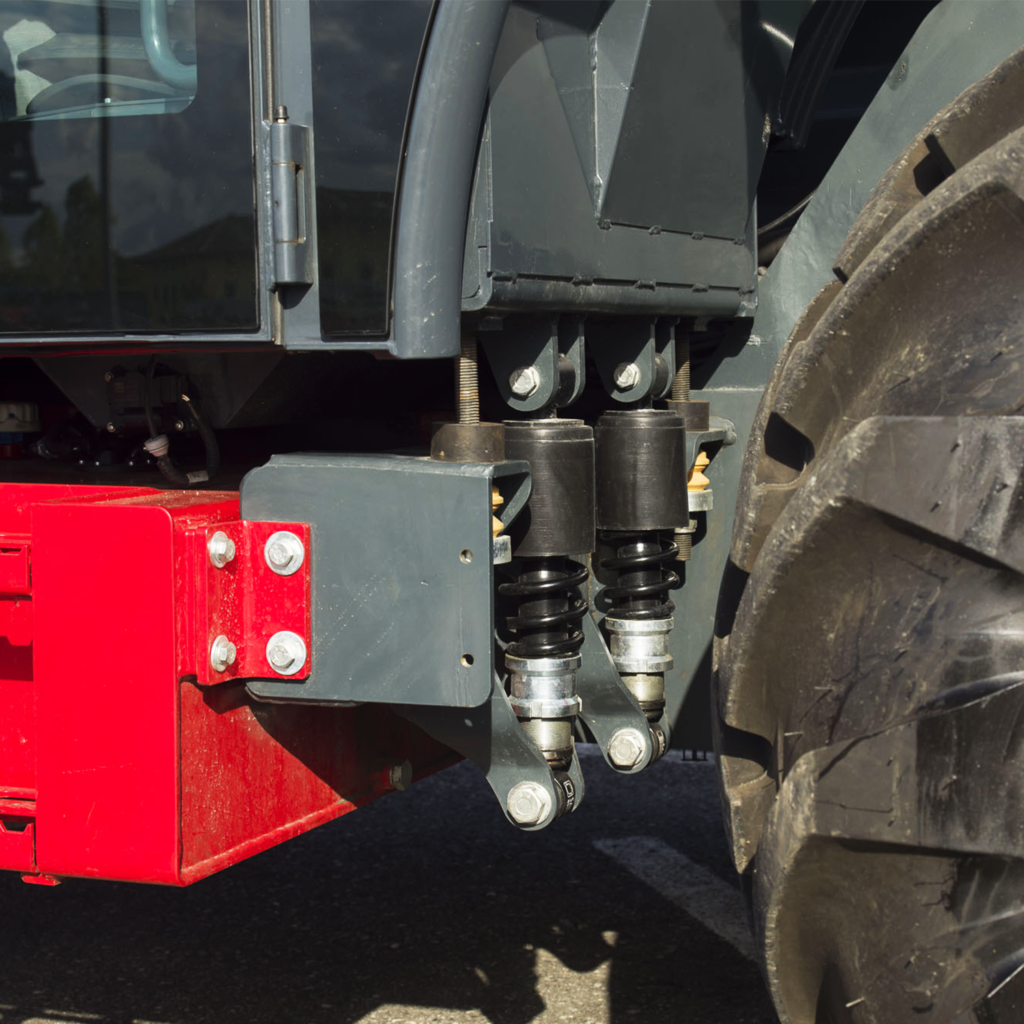

• Cab suspension : increases operator comfort and reduces vibrations while working.
• Shortcut buttons located on the control console provide quick access to the main functions on the screen. The operator can configure the shortcuts according to his/her preferences.

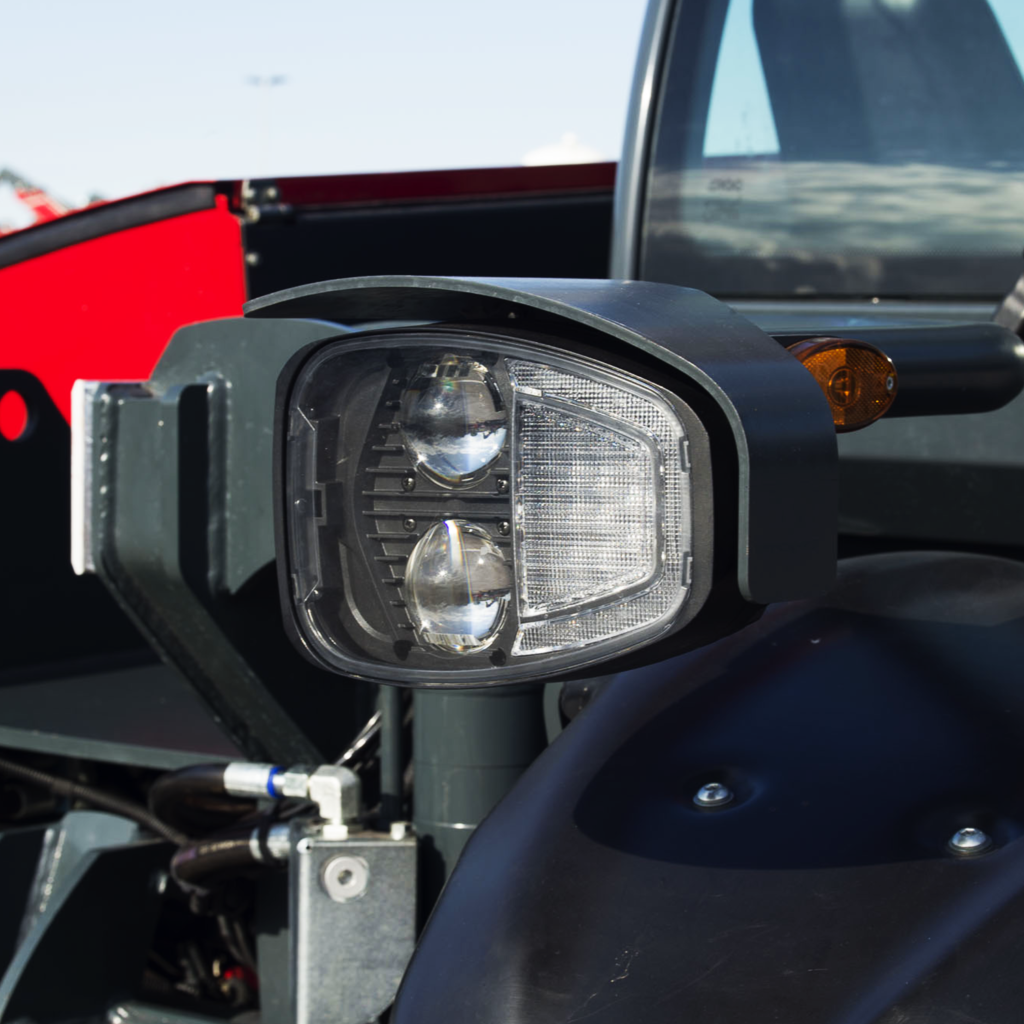

• LED front and rear lights as standard
• Engine retarder : solution implemented thanks to a joint effort between Magni and FPT. For safety reasons, this function maintains stable rpm on descents for greater protection of the shaft and engine when driving on steep roads.
• Electronic LC : the hydraulics are constantly monitored via electronics in order to reduce consumption and consequently the machine’s emissions as much as possible.
