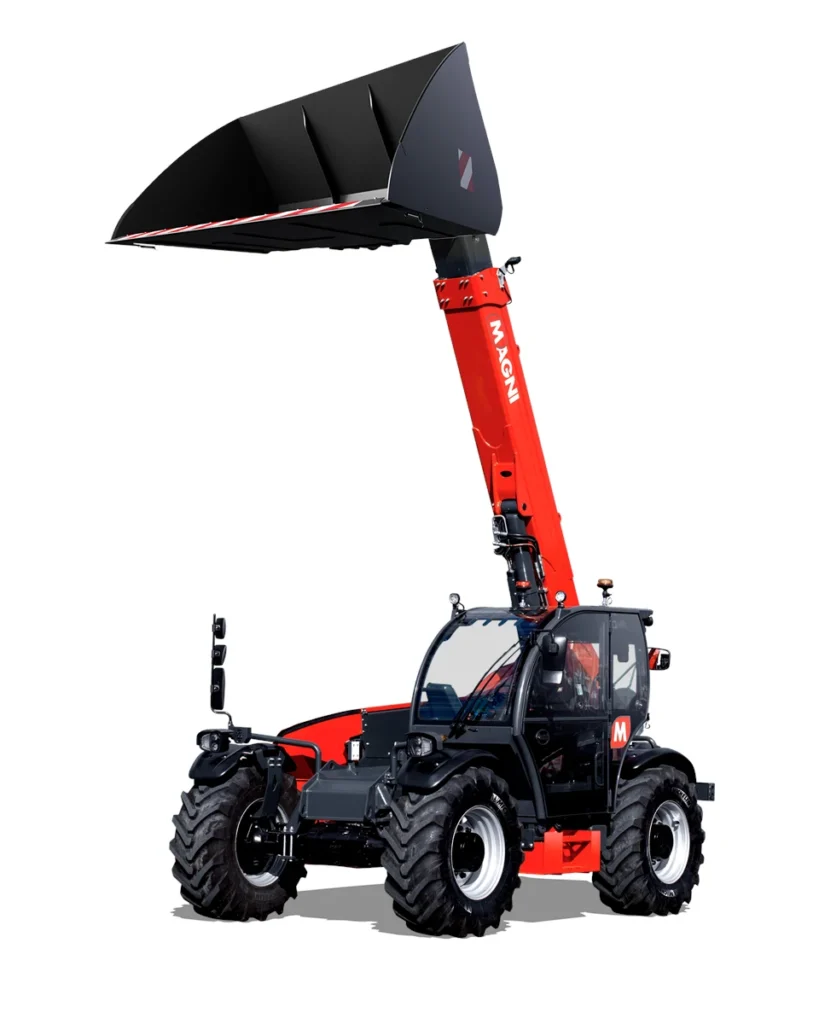

THA 5.8 L

• Stabilizers: No
• Maximum lifting capacity: 5000 kg
• Capacity at maximum height: 3000 kg
• Maximum lifting height: 7.6 m
• Maximum reach: 4.2 m
• Engine: FPT N45 Stage V
• Rated power: 125 kW (170 hp) 2200 rpm
• Max. hydraulic flow rate: 165 l/min
• Number of gears: 2/2
• Hydraulic circuit for movements: 350 bar Load sensing elettronico
• Length: 4.7 m
• Width: 2.4 m
• Ground clearance: 390 mm
• Unladen weight: 9700 kg
• Max. travel speed: 40 km/h
• Air conditioning: Yes
• Automatic RFID tools recognition system: Yes
• Reversible fan: Yes

• oad type approval 167/2013: Mother Regulation T1a
• 2006/42/CE EU Machinery Directive
• 2000/14/CE Noise Directive
• EN 1459-1 Relating to standards on the safety requirements for variable reach machines
• EN 280-1 standards relating to mobile elevating work platforms (if available)
• 2014/30/EU EMC Directive
• ROPS/FOPS level 2 relating to the standards for protective structures

With a lifting capacity of 5,000 kg and a maximum height of 7.6 meters, the new THA 5.8 L is designed to deliver high performance and reliability in any working condition. With its FPT N45 Stage V engine, it provides energy efficiency, reduced emissions, and consistent power even during the most demanding operations. The reinforced boom head allows the attachment of buckets with capacities up to 4,000 litres. This makes it the ideal partner for agricultural activities that demand strength, precision, and maximum stability.

Main features

To complete the operating experience, the model offers:

• A suspended cab, significantly reducing vibrations transmitted to the operator and improving comfort during long working hours
• A reversible fan, facilitating the easy removal of dust and debris from the ventilation surface
• Air conditioning as standard, ensuring maximum operator comfort in all weather conditions.
• Durable, vibration-resistant LED headlights providing optimal visibility in all environments
